CNC Milling
Use rigid setups and stable tool engagement to control heat and protect critical walls, pockets, and interfaces.
Explore CNC milling →MATERIAL GUIDE AND SUPPLIER SOURCING
Titanium Parts: Material Guide and Supplier Sourcing
Use this independent guide to compare typical Titanium properties, machining and finishing considerations, and the information suppliers may need before quoting custom parts.
MATERIAL OVERVIEW
Overview
Relative project profile
Strength-to-weight
Corrosion resistance
Machinability

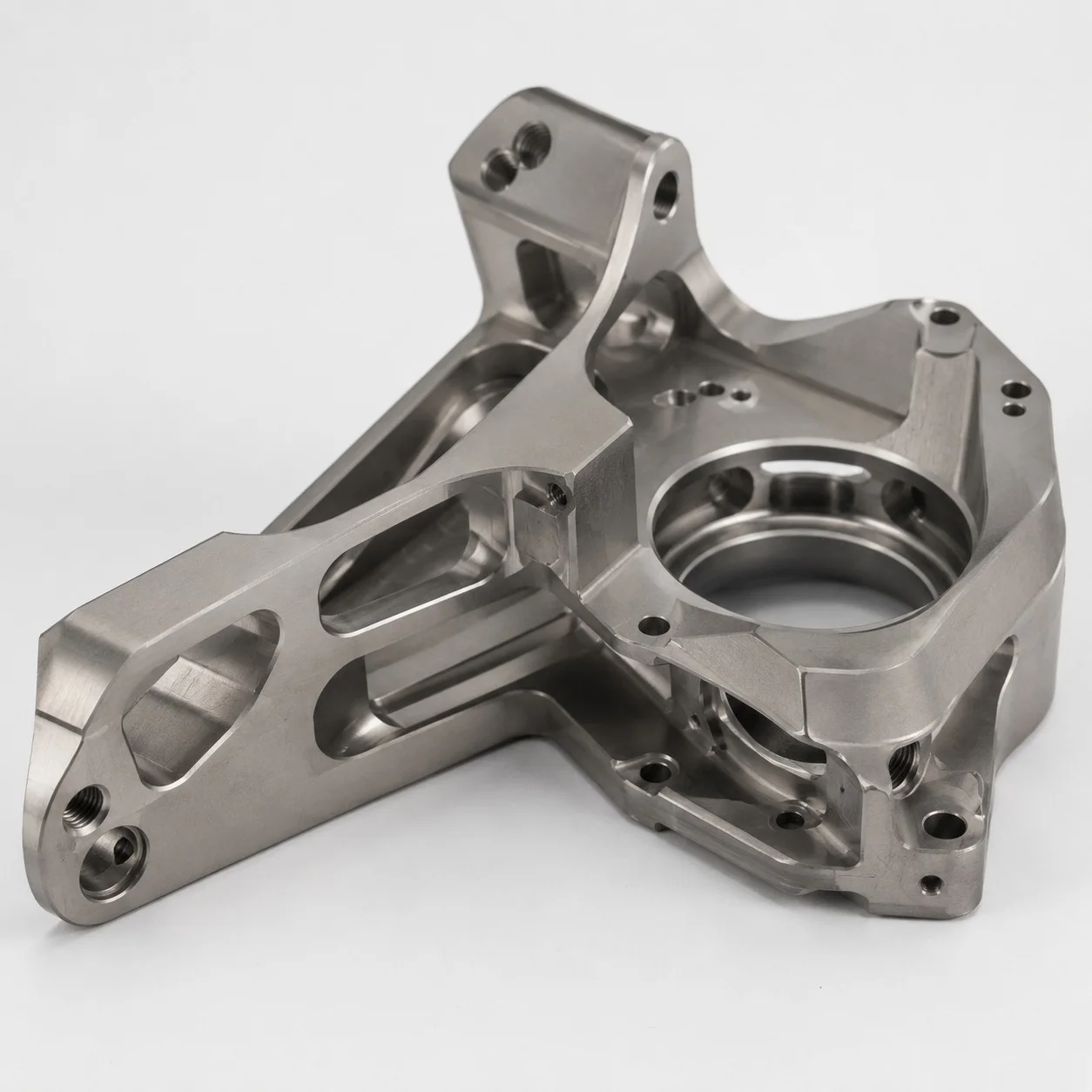

Order Custom Titanium Parts
- Feature
- A strong choice when a project needs high performance at lower mass, especially where corrosion resistance and long service life matter.
- Key Data
-
Common Grades Stock Forms Machining Finish Options Production Fit Grade 2, Grade 5 (Ti-6Al-4V) Plate, bar, billet, tube Controlled cutting parameters, rigid workholding, sharp tooling As-machined, bead blasting, polishing, passivation-compatible cleaning Prototype to low- and medium-volume precision parts - Properties
- Suitable For
- Aerospace brackets and housings
- Medical instrument components
- Robotic joints and lightweight structures
- Marine and chemical-exposure parts
- Performance fasteners and shafts
- Consider Alternatives When
- Ultra-low-cost commodity parts
- Designs with unnecessary deep pockets or excessive tool reach
- Projects where aluminum can meet the same load and environment at lower cost
PROCESS PLANNING
Machining & Finish
RapidMfgPro reviews geometry, tolerance, material behavior, finish, quantity, and inspection requirements before matching the project with suitable manufacturing resources.
CNC Turning
Suitable for shafts, sleeves, pins, threaded parts, and rotational medical or aerospace components.
Explore CNC turning →Surface Finishes
Finish selection depends on appearance, cleanliness, corrosion exposure, and friction requirements.
Discuss finish requirements →DESIGN GUIDE
Designing Parts in Titanium
Use the following points as an early DFM checklist. Final recommendations depend on part geometry, stock form, quantity, finish, and functional requirements.
Request a DFM ReviewReduce tool reach
Keep deep cavities and small internal corners only where they are functionally necessary.
Plan heat control
Allow practical cutting access and avoid very thin unsupported walls.
Define critical surfaces
Identify sealing, bearing, threaded, and cosmetic surfaces on the drawing.
Specify inspection needs
Call out critical dimensions, material documentation, and traceability before production.
TECHNICAL SPECIFICATION
Project Planning Reference
These are practical sourcing and machining guidelines, not a replacement for the certified material datasheet for the exact grade selected.
| Common grades | Grade 2, Grade 5 (Ti-6Al-4V) |
|---|---|
| Available stock | Plate, bar, billet, tube |
| Machining approach | Controlled cutting parameters, rigid workholding, sharp tooling |
| Finish options | As-machined, bead blasting, polishing, passivation-compatible cleaning |
| Production fit | Prototype to low- and medium-volume precision parts |
| Inspection planning | Define critical dimensions, fits, cosmetic surfaces, and documentation before production. |
SUPPLIER MATCH REQUEST
Need custom Titanium parts?
Upload your drawing and share the material, quantity, tolerance, finish, and delivery requirements.
